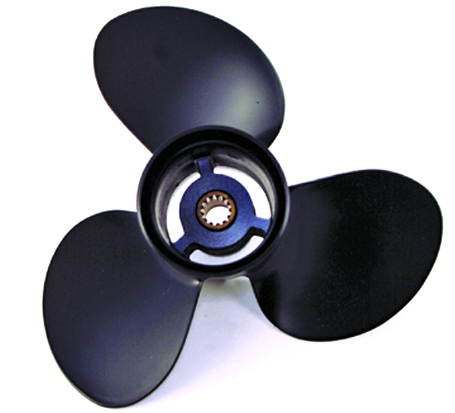

13 X 11 Aluminium Three Blade Right Hand Rotation Prop - BRP (763488)

This propeller is suitable for engines with 40-65 horsepower, two cylinders, a small gearcase, 75 horsepower, and a three-cylinder. Propellers went from a special aluminum alloy that offers greater strength and longevity than standard propellers. A corrosion-resistant baked-on paint provides additional protection against saltwater and galvanic corrosion to match your outboard's power curve for superior performance, and it has three blades that typically rotate in the right-hand direction. This product can replace the following BRP177152, BRP763488, 824375029554, 763488, and 177152. Please also see www.p65warnings.ca.gov for this product's cancer and reproductive harm warning website for your reference.

Key Features:

• Engine type: 40-65 horsepower, two cylinders, a small gearcase, 75 horsepower, and a three-cylinder.
• Corrosion-resistant baked-on paint provides additional protection against saltwater and galvanic
• Right-hand Rotation
• Can replace the following BRP177152, BRP763488, 824375029554, 763488, and 177152

Specifications:

• Brand: BRP
• SKU: 763488
• Weight: 5.70 lbs
• Material: Aluminum
• Diameter: 13
• Pitch: 11
• Blade Quantity: 3
• Number of Splines: 13

18-20'

Engine Application

40-65 Horsepower, Two Cylinder, Small Gearcase

40 hp…1984-2005;
48 hp…1987-thru;
50 hp…1975-2005;
55 hp…1976-79;
65 hp…1980-85

Attaching Hardware:H22

75 Horsepower, Three Cylinder, Small Gearcase

75 hp…1975-85;
Sprint…1986-92;
Formula E…1986-92

Attaching Hardware:H22

Attaching Hardware

H22

Cotter pin (10/pack):
Sierra: 18-3742
Cotter pin (100/pack):
Other: 354622
Nut (5/pack):
Sierra: 18-3705
Quicksilver: 859929
Nut kit (includes splined spacer):
Sierra: 18-3716
Splined spacer washer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward) ‘75 thru:
Sierra: 18-4230
Other: 320305

This product replaces:

BRP763488, 824375029554, 763488, 177152, BRP177152
