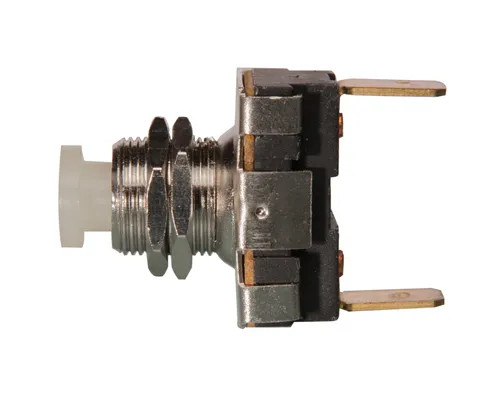

Brass Push-Pull Switch-3 Position. - Sierra Marine Engine Parts (MP39590)

SKU:
MP39590
UPC:
808282368111
MPN:
MP39590
Shipping:
Calculated at Checkout
$17.04

Description

A button transmits a signal to another device, causing it to go from on to off or vice versa. The push-button switch may perform necessary functions start, stop, forward and backward rotation, speed adjustment, and interlock.

A Push Button switch operates on a primary mechanism known as Push-to-Make. It is initially in the off or generally open position, but when pressed, it permits current to travel through it, or we may say it completes the circuit. Push/pull button switches are for applications where the ability to control a switch by pushing or pulling a knob.

Key Features:

  • Has mounting bushing of 3/8 inches

  • The first pull activates #1.

  • The second pull activates both circuits.

  • 15 amps @ 12 volts DC

  • SPDT switch positions are off-on(1)-on(1&2)

  • Chrome-plated brass and solid brass knob

  • Has three-blade terminals

  • Designed for maximum use

Product Specifications:

  • Brand: SeaStar Solutions

  • SKU: MP39590

  • UPC: 808282368111

  • Weight: 0.20 LBS

  • Switch Type: SPDT

  • Terminal: SPDT

  • Material: Brass

  • Item Dimensions: 3.18 x 1.75 x 6.81 inches

  • Color: Chrome

  • Manufacturer Part Number (MPN): MP39590

  • Replaces Products: 49-39591, 49-39590, MP3959, MP39592, 808282368111, 11-MP39590, 2312139590



Switch Positions: Off-On(1)-On(1&2) SPDT, First pull energizes #1, Second pull energizes both circuits, Solid brass construction w/ Chrome plated brass knob, 3 blade terminals

This product replaces:

    49-39591, 49-39590, MP3959, MP39592, 808282368111, 11-MP39590, 2312139590
