ARCO MARINE

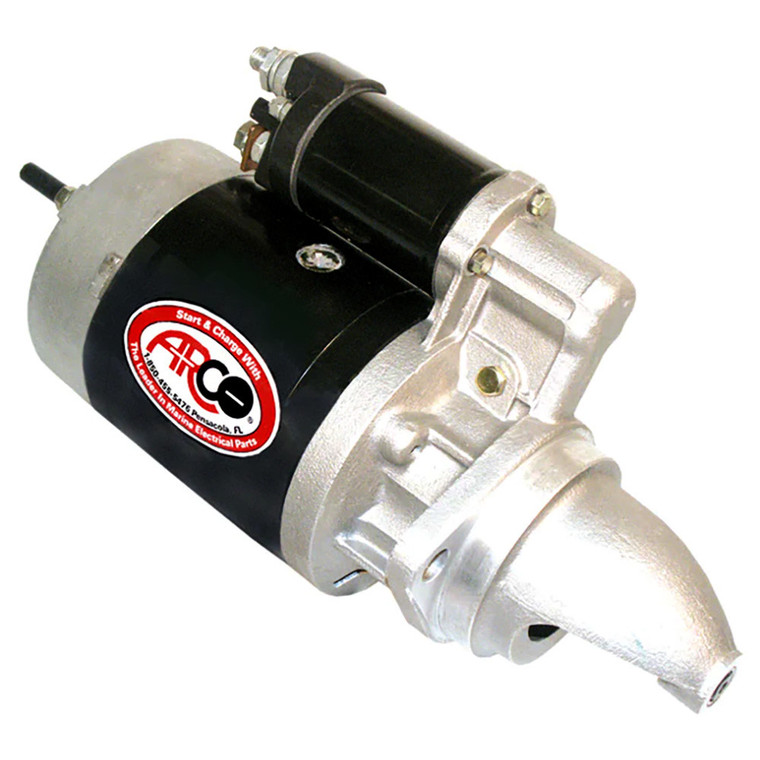

ARCO Marine Top Mount Inboard Starter - Clockwise Rotation

SKU:
CW59-IS97185
UPC:
693006007793
MPN:
30456
Shipping:
Free Shipping
  • ARCO Marine Top Mount Inboard Starter - Clockwise Rotation
  • ARCO Marine Top Mount Inboard Starter - Clockwise Rotation
  • ARCO Marine Top Mount Inboard Starter - Clockwise Rotation
  • ARCO Marine Top Mount Inboard Starter - Clockwise Rotation
  • ARCO Marine Top Mount Inboard Starter - Clockwise Rotation
MSRP: $270.18
$205.86
— You save $64.32

Description

Top Mount Inboard Starter - Clockwise Rotation

Top mount inboard starter that will fit Mercruiser, Pleasurecraft, Crusader, Marine Power, and more.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Arco Marine part number 30456

Features:

  • Dynamically tested and packaged for out-of-the-box performance
  • Nickel-coated and/or epoxy-painted to reduce corrosion
  • Sealed to minimize water intrusion
  • Designed for long life and optimum performance
  • Armatures are tested to withstand 50 times operating voltages (12 volts)

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

CRUSADER Inboard Starter 42090
DELCO Inboard Starter 19010617
MERCURY Inboard Starter 50-47454
MERCURY Inboard Starter 50-65785A1
MERCURY Inboard Starter 50-79604A1
MERCURY Inboard Starter 50-79604A3
MERCURY Inboard Starter 50-97499A2
MERCURY Inboard Starter 50-97499A3
MERCURY Inboard Starter 50-97499R2
MERCURY Inboard Starter 50-97499R4
PLEASURE CRAFT Inboard Starter RA122008
VOLVO Inboard Starter 841377-5
WESTERBEKE Inboard Starter 33486
SIERRA Inboard Starter 18-5901
SIERRA Inboard Starter 18-5907

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : ARCO Marine
Manufacturer Part No : 30456
UPC : 693006007793
