Digital Yacht

Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder

SKU:
WTDIYZDIGIAISTXPL
UPC:
703791696130
MPN:
ZDIGIAISTXPL
Shipping:
Free Shipping
  • Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder
  • CW83103_1
MSRP: $849.95
$713.95
— You save $136.00

Description

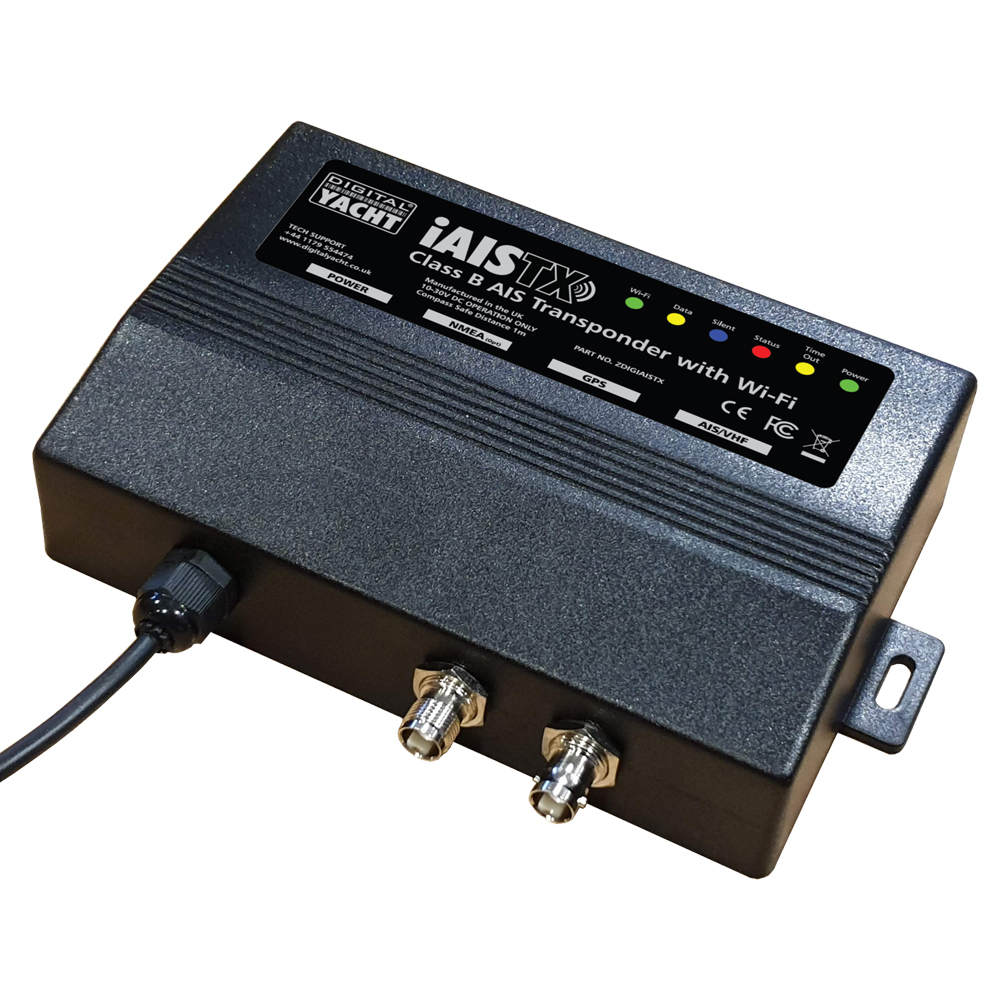

iAISTX Plus Class B Wireless & NMEA 2000 Transponder

iAISTX Plus has been designed specifically for the growing number of boaters who use an iPad or Android tablet for their navigation tasks. As a full function Class B transponder, it sends your boat position and identity data to other AIS equipped vessels as well as providing a wireless interface for mobile devices with popular apps to display received data from other AIS equipped vessels.

This PLUS model also has a NMEA 2000 interface (with integral drop cable) so that it can integrate with modern plotters, instruments and multi-function displays to provide AIS functionality.

iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach).

AIS transponders require one time programming with the boat’s identity and physical dimensions and this is done through a simple, embedded web interface via the tablet’s browser (Safari, Chrome, etc.).  This can also be used to silence the transmission and set up wireless parameters such as passwords.  Installation is simple – just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boat’s existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.

Features:

  • Class B AIS transponder with a wireless interface for phones, tablets, iPads and PCs
  • NMEA 2000 interface for plotter and multi function display AIS compatability
  • Support for all the latest target types such as ATONs and AIS MOB devices
  • Latest HF AIS technology for superior performance
  • UDP and TCP/IP protocols supported for up to 7 connected devices
  • Password protected, secure wireless connection
  • Internal wifi antenna will typically footprint a boat up to 60ft in length
  • Supplied with external GPS antenna and 10m (33ft) cable which can be deck mounted or fitted to standard 1” mount
  • Compatible with 100s apps.  See our reviews at www.digitalyacht.net
  • LED status indicators for wireless connection, data, status, time out, power and silent mode
  • Easy embedded web interface for programming
  • Measures just 20 x 14 x 4.5cm
  • 12/24V operation and ultra-low 2W consumption

Manufacturer : Digital Yacht
Manufacturer Part No : ZDIGIAISTXPL
UPC : 703791696130
