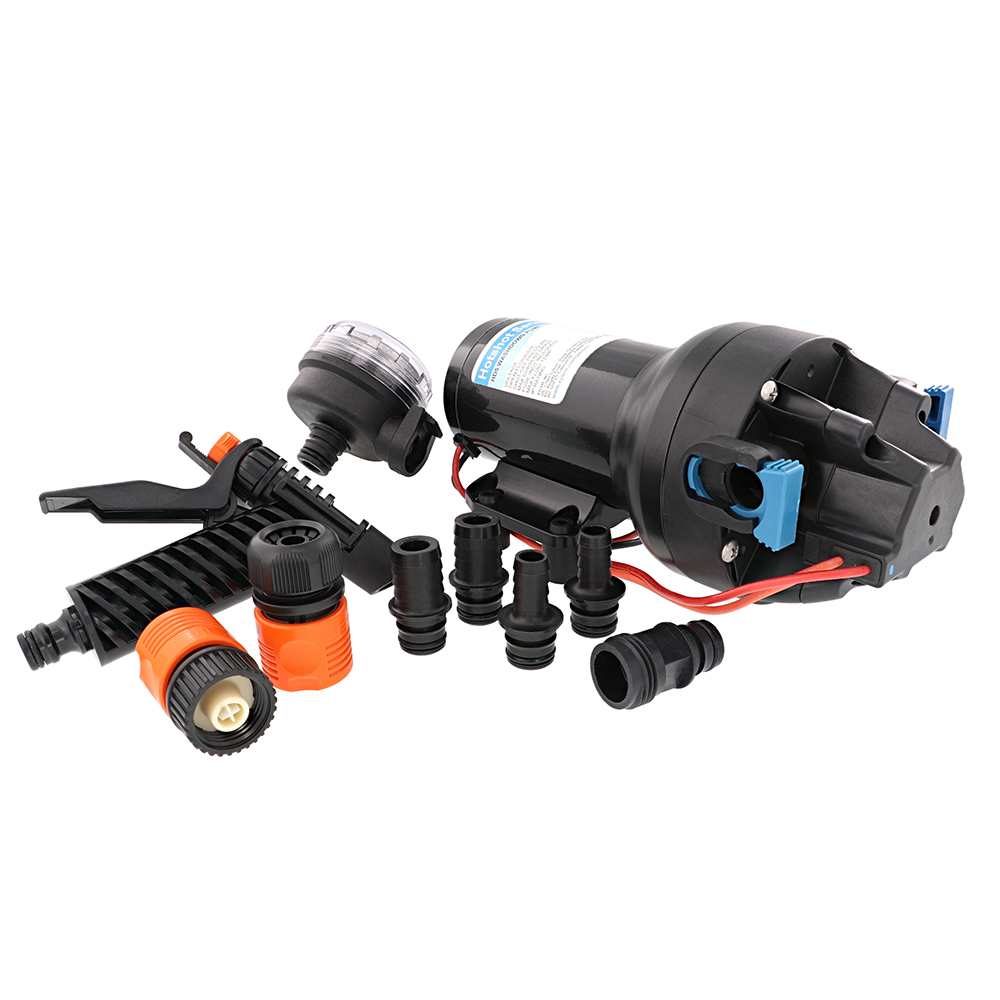

Jabsco HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI

SKU:
CW59-IS86585
UPC:
671880841818
MPN:
32305-5012-3A
Shipping:
Free Shipping
  • Jabsco HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI
  • CW86585_4
  • CW86585_3
  • CW86585_2
  • CW86585_1
MSRP: $182.99
$135.47
— You save $47.52

Description

HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

  • Co-molded diaphragm technology for long life and durability
  • HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Full kit versions available which include 25' (7.6m) hose coil

Specifications:

  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self-priming capability: 7ft min (2.1m min)
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6

Fittings & Accessories:

  • Quick Connect straight hosebarb and GHT fittings. Size varies by model.
  • Inline 40 mesh Quick Connect strainer
  • Trigger nozzle & Quick Connect hose adapters
  • No kit versions with hose offered

WarningWARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.


Manufacturer : Jabsco
Manufacturer Part No : 32305-5012-3A
UPC : 671880841818
