Marinco

Marinco Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

SKU:
CW59-IS89520
UPC:
035028710822
MPN:
71082
Shipping:
Free Shipping
MSRP: $347.91
$231.17
— You save $116.74

Description

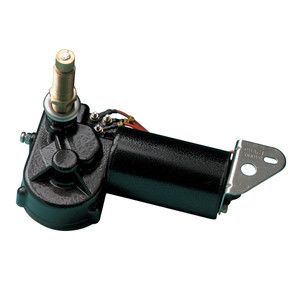

Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.

Features:

  • Available in three shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
  • Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
  • Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
  • Two-speed motor
  • Sealed 6" wire leads, 16 AWG
  • Adjustable right or left self-parking
  • 0.625" diameter shaft (16 mm)
  • Available in 12V and 24V models
  • Coast to park
  • RF shielded circuitry
  • Retail version includes 5 amp fuse and holder (operating switch not included)
  • Measures approximately 7.75" L x 4" W x 2.75" D
  • Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
  • Stall current: 11.5-13.0 amps
  • No load current: 0.5-1.2 amps
  • Replaces AFI 2000 motor

Manufacturer : Marinco
Manufacturer Part No : 71082
UPC : 035028710822
